9600 (horizontal)*1 x 2400 (vertical) |
|
|
| Type |
Permanent |
| Number of Nozzles |
Total 1,856 nozzles
（C/M: 256x4 nozzles, PBk/Y: 256x2 nozzles,
PgBk: 320 nozzles） |
| Ink droplet size |
1pl/2pl/5pl (C/M), 2pl/5pl (Bk), 5pl（Y）, 30pl (PgBK) |
|
|
| Black *2 |
A4 Plain Paper/Max Speed: 20ppm |
| Color *2 |
A4 Plain Paper/Max Speed: 14 ppm |
| Photo (A4/8 x 10" image) *2 |
PP-201/Standard: approx. 99 sec. |
| Photo (4 x 6") *2 |
PP-201/Standard/Borderless: approx. 50 sec. |
| Camera Direct (4 x 6"） *3 |
PP-201/Borderless: approx. 104 sec |
|
Up to 203.2mm(8 inch)
Borderless: Up to 216mm(8.5 inch) |
|
|
| Borderless Printing *4 |
Top/Bottom/Right/Left margin: 3.4 mm
(Supported Paper Size: A4/Letter/8 x 10"/5 x 7"/
4 x 6"/Credit Card/Wide) |
| Bordered Printing |
Top margin: 3mm, Bottom margin: 5mm,
Left/Right margin: 3.4mm (Letter/Legal: Left:6.4mm, Right:6.3mm) |
|
Top margin: 46mm / Bottom margin: 35mm |
|
A4, Letter, Legal, A5, B5, Envelopes (DL, COM10),
4 x 6", 4 x 8", 5 x 7", 8 x 10", Credit Card, Wide |
|
|
| Plain paper |
A4=50, Legal=50 |
| Super White Paper (SW-201) |
A4/Letter=40 |
| High Resolution Paper (HR-101N) |
A4/Letter=30 |
| Photo Paper Pro (PR-101) |
A4/Letter=10, 8 x 10"=10, 4 x 6"=10, 4 x 8"=10*, Wide=10
*For US market only |
| Photo Paper Plus Glossy (PP-101) |
A4/Letter=10, 4 x 6"=10, 5 x 7"=10 |
| Photo Paper Plus Glossy II (PP-201) |
A4/Letter=10, 4 x 6"=10, 5 x 7"=10 |
| Photo Paper Plus Semi-gloss (SG-201) |
A4/Letter/8 x 10"=10, 4 x 6"=20 |
| Glossy Photo Paper (GP-401) |
A4/Letter=10, 4 x 6"/Credit Card =10 |
Glossy Photo Paper "Everyday Use"
(GP-501) |
A4=10, 4 x 6" =10 |
Photo Paper Glossy (US/Canada Only)
(GP-502) |
A4/Letter=10, 4 x 6"=10 |
| Matte Photo Paper (MP-101) |
A4/Letter=10, 4 x 6"=10 |
| Photo Paper Plus Double Sided (Manual)(PP-101D) |
A4/Letter/5 x 7"=10
*Manual, Not supported for Macintosh |
| Photo Sticker (PS-101) |
1 |
| T-Shirt Transfer (TR-301) |
1 |
| Envelope |
European DL and US Com. #10 = 10 |
|
|
| Rear Tray |
Plain Paper：64-105 g/m² |
| Safety |
Canon specialty paper: max paper weight: approx. 273g/m²(Photo Paper Plus Double Sided PP-101D) |
|
Dot count |
|
Auto/Manual |
|
|
| PC |
USB 2.0 Hi-Speed (B port)
IrDA IR, Bluetooth ｖ2.0: Maximum Speed 1.44Mbps
(Option, HCRP） |
| Camera Direct |
Direct Print Port (PictBridge) |
| Mobile Phone |
IrDA IR（JPEG/PNG only, Bluetooth ｖ2.0: Maximum Speed 1.44Mbps (Option, JPEG/PNG only、OPP, BIP, BPP）,
Direct Print Port （PictBridge） |
|
Canon Extended, BJL, Status |
|
Temperature:5-35°C, Humidity:10-90% RH (no condensation) |
|
Temperature:0-40°C, Humidity: 5-95% RH (no condensation) |
|
approx. 38.5 dB(A) |
|
AC 100-240V 50/60Hz |
|
Standby: approx. 1.5W
OFF: approx. 0.4W
Printing*5: approx. 9W |
|
|
| EMC |
FCC(US), IC(Canada), CE Mark(EU), GOST-R(Russia), Saudi Arabia Reguration, C-Tick(Australia), RPC(Taiwan), MIC(Korea), CCC(China) |
| Safety |
UL(US), C-UL(Canada), IRAM (Argentine), CE Mark(EU), GOST-R(Russia), Saudi Arabia Reguration, FT(Austria), SPRING(Singapore), RPC(Taiwan), EK(Korea), EPSR(Hong kong), CCC(China), CB Report |
|
|
| Regulation |
RoHS(EU), WEEE(EU), RoTH(China) |
| Eco-Label |
Energy Star |
|
322 × 185 × 61.7mm (12.7 x 7.3 x 2.4 inch),
approx 2kg (4.4 Ib) |
*1. Ink droplets can be placed with a pitch of 1/9600 inch at minimum.
*2. PPM print speed is based on the highest speed mode setting using Canon standard patterns on plain paper.
Photo print speed is based on the default setting using "ISO/JIS-SCID N2"on 4 x 6"Photo Paper Plus Glossy II.
Print speed measured as soon as first page begins to feed into printer and will vary depending on system configuration, interface, software, document complexity, print mode, page coverage, type of paper used etc. and does not take into account data processing time on host computer.
*3. When printing equivalent to the 7.1 megapixel image taken by certain Canon digital camera from PictBridge with "Default" setting on Print Effect without border using Photo Paper Plus Glossy.
Actual print speed may vary depending on image data, print mode, type of paper and camera that is connected to, etc.
*4. Supported paper types for borderless printing: Photo Paper Pro, Photo Paper Plus Glossy, Photo Paper Plus Glossy II, Photo Paper Plus semi-gloss, Glossy Photo Paper, Matte Photo Paper, Photo Paper Plus Double-sided, Photo Paper Glossy(US/Canada Only)
*5. When printing ISO/JIS-SCID N2 pattern on A4 size plain paper with the Standard mode.
Specifications are subject to change without notice. |
|
|
| Certification |
IrDA IR |
| Maximum Speed |
4Mbps |
| Operating Range |
within 20cm |
| Operating Angle |
±10°C from the optical axis |
| Supporting Protocol |
±10°C from the optical axis |
| Compatible Devices |
PC, PDA*, Mobile phone
*PocketPC 2002/Palm OS3.5/4.1/5.0 or later |
| OS Supported |
PC: Windows Vista/XP/2000 One-way communication |
|
|
| Type |
Lithium-ion |
| Voltage Level |
11.1V 2300mAh |
| Charging Time (hrs) |
approx. 3 |
| Remaining Indication |
LED 3 steps |
| Printable Pages*1 |
approx. 290 sheets |
| *1 Conditions: Tested under normal temperature and humidity, using fully-charged new battery, printing ISO/IEC 24712 files (5 patterns) continuously in color on A4 plain paper in Standard mode of printer driver. |
|
|
| Battery Pack |
Weight (approx): 180g
WxDxH (mm): 161 x 41 x 27 |
| Battery Attachment |
Weight (approx): 80g
WxDxH (mm): 268 x 54 x 31 |
|
|

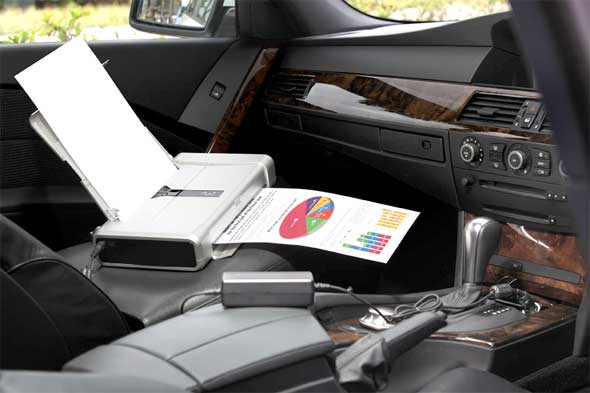

| Compatible automobile car |
DC12V/24V negative ground car |
| Input Voltage |
DC12/24V |
| Output level |
DC16V, 3A |
| Dimensions (W x D x H) |
120mm x 60mm x 36mm |
| Weight |
approx. 380g (Cable included) |
